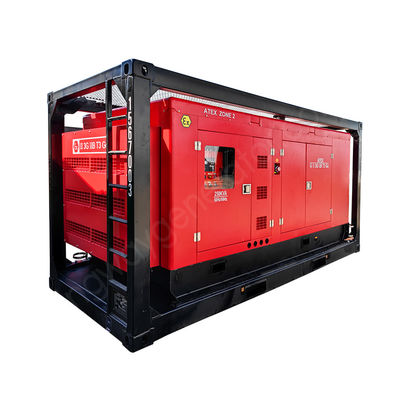

250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set

Sertifika
Çin Qingdao Kingway Industry Co., Ltd. Sertifikalar
Çin Qingdao Kingway Industry Co., Ltd. Sertifikalar
Ben sohbet şimdi

250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set

250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set
250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set 250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set

Büyük resim :  250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Kingway
Sertifika: ATEX/DNV/BV/ROHS
Model numarası: EADG250-EX
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: 251000USD
Ambalaj bilgileri: Standart ihracat ambalajı
Teslim süresi: 80 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: Yılda 500 adet

250KVA ATEX Explosion-Proof Diesel Gensets 50Hz 60Hz Zone 2/ Zone 1 Use Diesel Generator Set

Açıklama
Ürün: Atex Zone 2 Dizel Jeneratör Seti Gaz Sahası ve Petrol Sahası fabrika test raporu: Tedarik edilen
Asal Güç: 250kVA/200kW Malzeme: Paslanmaz çelik
soğutma yöntemi: Kapalı Su soğutmalı yağlama tarzı: yağlanmış
Tehlikeli Alan: Bölge 2/Bölge 2 Güvenliği/Bölge 1 Alan için kullanılır: Açık Deniz ve Kara
hizmet: Görüntülü Teknik Destek Renk: Kırmızı/Beyaz/Özelleştirilmiş
Vurgulamak:

250KVA ATEX explosion-proof diesel generator

,

Zone 2 Zone 1 diesel genset

,

50Hz 60Hz explosion-proof generator set

Kingway ATEX Certified Zone 2 Ex Proof equipment is for applications in Hazardous Area ( Zone 2 or Zone 1). The genset products use Cumins or Perkins engine to make the Zone 2 Conversion mounted in the DNV Standards certificate 2.7-1 lifting frame.

Quality & Compliance:
The Kingway Ex product follow the ATEX standard EN 60079 series and EN 1834 series. The equipment will give awhich is signed by the manufacturer according to the ATEX directive.

BV  BV will do the third party inspection, and will issue the BV third party inspection report, and make the following summary: The equipment is     Cmpliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU, and is suitable to be used in Zone 2 IIB T3 Hazardous Area.



Product name ATEX Zone 2 Diesel Generator Set
Applicable Hazardous area zone 1/zone 2
Power/Capacity 250KVA
Certification ATEX, DNV, BV, ROHS
Frequency 50HZ, 60HZ
Speed 1500RPM, 1800RPM
Engine brand Cumins/Perkins
Controller Deepsea/ComAP
Installation type Fixed or portable
Starting System Electric/Hydraulic/Spring Start
Operating temperature -25°C to +60°C
