Water Cooled 50hz 1500rpm 160kw Natural Gas Engine

Sertifika
Çin Qingdao Kingway Industry Co., Ltd. Sertifikalar
Çin Qingdao Kingway Industry Co., Ltd. Sertifikalar
Ben sohbet şimdi

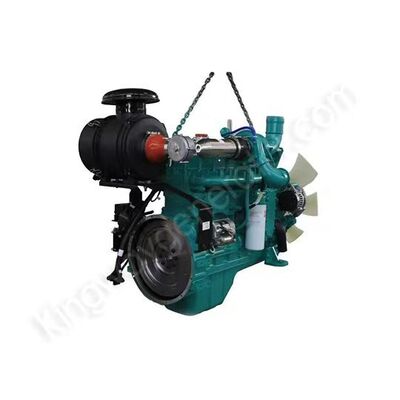

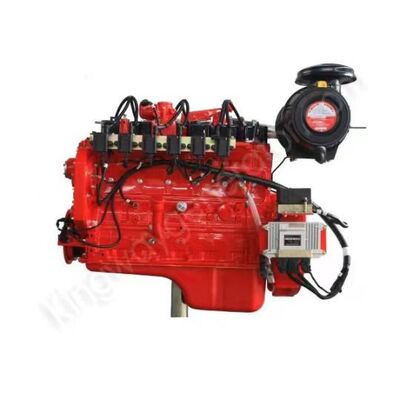

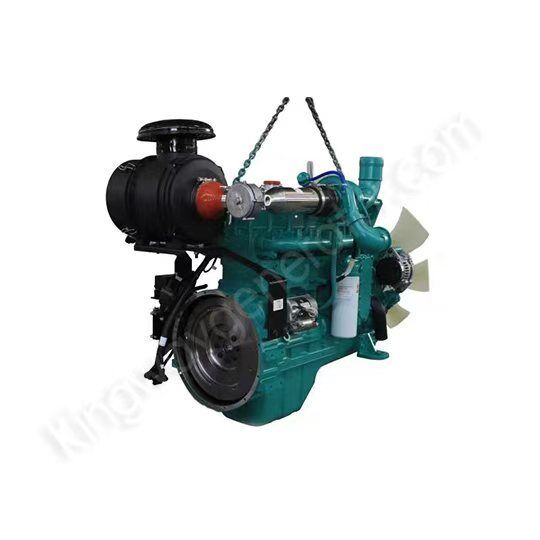

Water Cooled 50hz 1500rpm 160kw Natural Gas Engine

Water Cooled 50hz 1500rpm 160kw Natural Gas Engine
Water Cooled 50hz 1500rpm 160kw Natural Gas Engine Water Cooled 50hz 1500rpm 160kw Natural Gas Engine Water Cooled 50hz 1500rpm 160kw Natural Gas Engine Water Cooled 50hz 1500rpm 160kw Natural Gas Engine

Büyük resim :  Water Cooled 50hz 1500rpm 160kw Natural Gas Engine

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: KINGWAY
Sertifika: CE, ISO,
Model numarası: KGC200NS
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Takım
Fiyat: 17000.00
Ambalaj bilgileri: tahta sandık
Teslim süresi: 14 Gün
Ödeme koşulları: L/C, T/T
Yetenek temini: 20 adet/ay

Water Cooled 50hz 1500rpm 160kw Natural Gas Engine

Açıklama
Hız: 1500 dev/dak, 1800 dev/dak Nominal gerilim: 230/400V, 110/220V
IP Seviyesi: IP23 Motor Tipi: 2 Zamanlı Hava Soğutmalı
Soğutma sistemi: Su Soğutmalı Nominal Frekans: 50 Hz
Gürültü: ≤105 dB(A) @ 1m

Product Details

Gas engines are efficient and eco-friendly power equipment compatible with clean energy like natural gas and liquefied gas. With a power range of 50KW-1000KW, they can replace traditional fuel engines and are widely used in scenarios such as power generation, construction machinery, and distributed energy systems, helping customers reduce costs and achieve green production.​

They have three core advantages: high efficiency and energy savings (fuel utilization increased by 15%-20%), low-carbon and environmental protection (no black smoke, CO₂ emissions reduced by over 30%), and stability and durability (annual failure rate ≤0.5%, service life of 15 years). Customized solutions are provided for different industries—for example, generator sets support 72-hour continuous operation, construction machinery is suitable for field work, and distributed energy systems realize combined "power + heat" supply.​



Engine Specifications
Model LYC8.3H-G180
Rated /Standby Power(KW) 170/188
Cylinder Number 6
Type 4-Stroke,In-line
Bore x Stroke (mm) 159x159
Compression ratio 17.3:1
Rated speed (RPM) 1500/1800
Displacement (L) 8.3
Cooling method Closed Water-cooled
Type 4 Stoke, In-Line.
Fuel Natural Gas/Biogas/LPG
Voltage 230V/400V, 110V/220V, As Client's Requirement.
Frequency 50HZ/60HZ

2. Core Performance Advantages

High Efficiency & Low Gas Consumption

Optimized combustion system and precise electronic air‑fuel ratio control deliver lower gas consumption, significantly reducing long‑term power generation costs for 24‑hour continuous stable operation.
Wide Gas Compatibility

Compatible with natural gas, biogas, landfill gas, coal‑bed methane, blast furnace gas and biomass gas. High tolerance to impurities and hydrogen sulfide, suitable for remote areas, industrial mines and farms.
High Reliability & Long Service Life

Robust engine structure with durable key components, long overhaul cycle and low failure rate. Ideal for industrial & commercial standby power, combined heat and power (CHP), and distributed power stations for long‑term unattended operation.

3 Environmental Compliance Advantages

Low Emission & Low Noise

Lean‑burn technology ensures low NOₓ and CO emissions, meeting domestic and international environmental standards for Europe, Southeast Asia and other regions. Standard noise reduction system provides excellent noise control.
Waste Heat Utilization for CHP

Can be equipped with waste heat recovery systems for heating, hot water supply and refrigeration, achieving high comprehensive energy efficiency for hotels, factories, farms and industrial parks.

4. Structural & Maintenance Advantages

Intelligent & Stable Control System

Adopts self‑developed or imported intelligent control systems with auto start‑stop, overload protection, fault alarm and remote monitoring features, easy to operate with high automation.
Easy Maintenance & Universal Spare Parts

Modular design for simple maintenance. Universal core spare parts with stable supply and fast after‑sales service, lowering later‑stage operation and maintenance costs.
Optional Explosion‑proof & High‑protection Grade

ATEX explosion‑proof and high‑protection versions available for mines, chemical plants and flammable & explosive environments with high safety performance.

5. Business & Export Advantages

Supports DDP export, customized voltage and frequency (50Hz/60Hz, 220V/380V/400V/480V etc.) for global markets.
Compact structure for easy transportation and installation with short delivery time.
One‑stop solutions including complete units, control systems, load banks, sound‑proof containers and waste heat systems are available.

Water Cooled 50hz 1500rpm 160kw Natural Gas Engine 0Water Cooled 50hz 1500rpm 160kw Natural Gas Engine 1Water Cooled 50hz 1500rpm 160kw Natural Gas Engine 2
